358 Security Fence Welding Machine

Short Description:

Model No.: DP-FP-3200A

Description:

This mesh welding production line is designed for the production of Anti-climb fence mesh, 358 fence panel mesh, and clear view fencing mesh.

The newly developed pneumatic welding system enables more efficient manufacturing of fence mesh for stronger welding.


  • Wire diameter: 3-6mm
  • Welding width: Max.3200mm
  • Mesh length: Max.3000mm
  • Welding speed: 120times/min
  • Product Detail

    Product Tags

    358-Security-Fence-Welding-Machine

    358 Security Fence Welding Machine

    3-6mm wire diameter range

    50-300mm grid size range adjustable

    Match your different order requirements;

    Wire mesh fence panel welded machine, used to produce different kinds of fence panels, such as Normal 2D fence panels (without bending); we can equipped with different fence panel bending machines, to help you produce 3D fence panels, also named V-mesh panel, with bending, anti-climb fence panel (358 fence mesh), is most popular in South Africa market, and Fold top fence mesh, suitable for east south Asia market;

    Our machine grid size is easily adjustable, so you can use a single welding machine to produce various size mesh panels to match your different fence panel order demands;

    Send an inquiry with your specifications, we will make a solution for you according to your demands and budget;

    clearvu-fence-Machine

    358 anti-climb fence machine advantages:

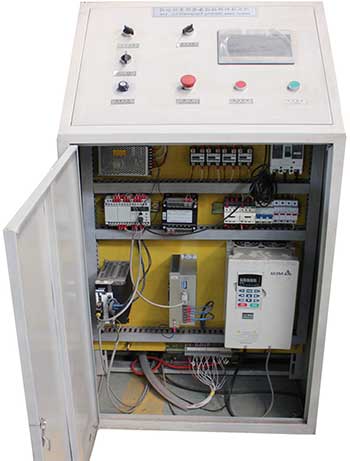

    Famous brand configuration; (Panasonic PLC, Schneider electrics, Delta inverter+ power supply, ABB switch)

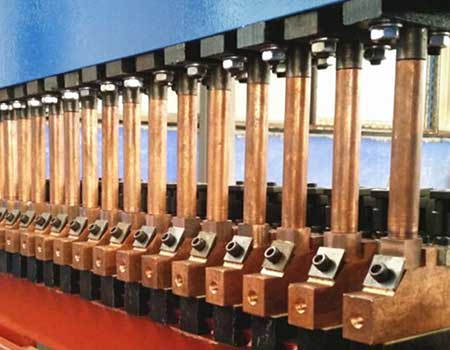

    Welding electrodes are made of pure copper (upper Φ20*120mm, lower 20*20*30mm), durable.

    Electrical-cabinet

    Welding-electrodes

    Copper plate connect lower electrode base and welding transformers. Before use copper wires.

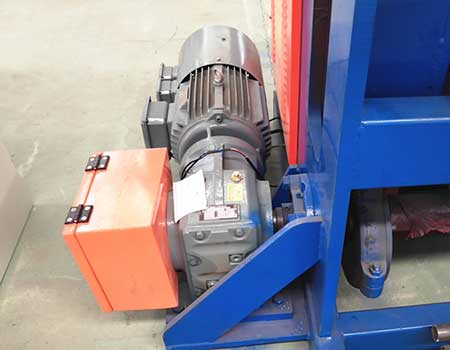

    Main motor (5.5kw)& planetary reducer connect the main axis directly, big transmission torque.

    Copper-plate

    Main-motor

    5. Cast water-cooling welding transformers, high efficiency. Welding degree is adjusted by PLC.

    6. The circuit board is designed by our engineers and university professors, not be easily broken.

    water-cooling-system

    circuit-board

    Machine Parameter:

    Model

    DP-FP-2500A

    DP-FP-3000A

    DP-FP-3000A+

    DP-FP-3200A+

    DP-FM-3000A

    Line wire dia.

    (pre-cut)

    3-6mm

    3-6mm

    2.5-6mm

    2.5-6mm

    3-8mm

    Cross wire dia.

    (pre-cut)

    3-6mm

    3-6mm

    2.5-6mm

    2.5-6mm

    3-8mm

    Line wire space

    3-5mm: 50-300mm

    5-6mm: 100-300mm

    3-5mm: 50-300mm

    5-6mm: 100-300mm

    75-300mm

    75-300mm

    75-300mm

    Cross wire space

    12.5-300mm

    12.5-300mm

    12.5-300mm

    12.5-300mm

    12.5-300mm

    Max. Mesh width

    2500mm

    (fence height)

    3000mm

    (fence height)

    3000mm

    (fence width)

    3200mm

    (fence width)

    3000mm

    (fence width)

    Max. Mesh length

    6m (fence width)

    6m (fence width)

    6m

    (fence height)

    6m

    (fence height)

    6m

    (fence height)

    Welding speed

    50-75 times/ min

    50-75 times/ min

    Max. 120times/ min

    Max. 120times/ min

    Max. 120times/ min

    Welding electrodes

    51 pcs

    61 pcs

    41 pcs

    44 pcs

    41 pcs

    Welding transformer

    150kva*6 pcs

    150kva*8 pcs

    150kva* 10pcs

    150 kva*11pcs

    150kva*10pcs

    Weight

    4.2T

    5.8T

    7T

    7.3T

    7.1T

    Accessory equipment:

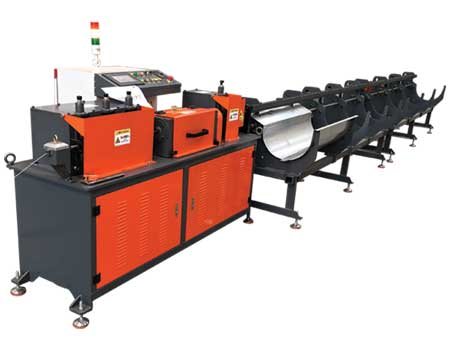

    Wire straightening and cutting machine

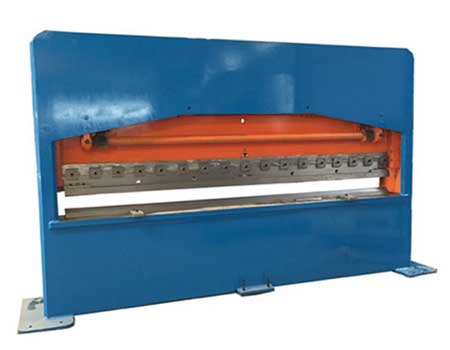

    Bending machine

    wire-straightening-and-cutting-machine

    bending-machine

    Finished Product:

    security-fence

    Sales-after service

     shoot-video

    We will provide a full set of installation videos about the concertina razor barbed wire making machine



     Lay-out

    Provide the layout and electrical diagram of the concertina barbed wire production line

     Manual

    Provide installation instruction and manual for automatic security razor wire machine

     24-hour-online

    Answer every question online 24 hours a day and talk to professional engineers

     go-abroad

    Technical personnel go abroad to install and debug razor barbed tape machine and train workers

     Equipment maintenance

     Equipment-Maintenance   A. Lubrication liquid is added regularly. B. Checking electric cable connection every month.

    Wire mesh fence panel welded machine, used to produce different kinds of fence panel, such as Normal 2D fence panel (without bending); we can equipped with different fence panel bending machine, to help you produce 3D fence panel, also named V-mesh panel, with bending, anti-climb fence panel (358 fence mesh), is most popular in South Africa market, and Fold top fence mesh, suitable for east south Asia market;

    Our machine grid size is easily adjustable, so that you can use single welding machine produce various size mesh panel to match your different fence panel order demands;

    Send inquiry with your specifications, we will make solution for you according to your demands and budget;

    FAQ:

    1. Can i use single welding machine produce different size panel?

    -  yes, wire diameter range is 3-6mm, grid size range is 50-300mm; width under your machine width is ok;

    2. If i need to make different products, such as V type, and P type, what should i do?

    - Just need to buy different bending machine, V-bending machine and P bending machine to match different needs is enough;

    3. How much labor required for this fence panel production line?

    - 1-2 workers is ok;

    4. How long do you need for delivery?

    - normally is 30-40 working days after receiving your deposit;
