Animal Cage Welding Machine
Animal Cage Welding Machine
● Pneumatic, type automatic
● High speed
● High production
● Whole product line of cages
Pneumatic poultry cage welding machine DP-AW-1500F is used to weld cage mesh for poultry cage. F model machine used the latest technology. It equips SMC 50 multi-force air cylinder controlling welding electrodes which is the advanced technology of 2-4mm wire mesh welding machine.
Animal cage welding machine advantages
Welding system: Pneumatic type welding with SMC (Japan) air cylinders
● Welding in high speed, testing speed can reach 200 times per minute. Normal working speed 120times per minute.
● Cast water-cooling transformers, welding degree can be adjusted by PLC.
Wire feeding way:
● The longitude wires are fed from wire coils automatically.
● The cross wires should be pre-straightened & pre-cut, then fed by cross wire feeder automatically. And the cross wire feeder is specially designed, much easier to feed the cross wires.
Mesh pulling system:
● Panasonic (Japan) servo motor for pulling mesh, cross wire space can be adjusted by PLC.
● The cable drag chain is similar to European brand, not easily hung down, protect pipes and cables.
Animal cage welding machine parameter
|
Model |
DP-AW-1200H |
DP-AW-1600H |
DP-AW-1200H+ |
DP-AW-1600H+ |
|
Line wire dia(coil) |
2-4mm |
|||
|
Cross wire dia(Pre-cut) |
2-4mm |
|||
|
Line wire space |
50-200mm |
25-200mm |
||
|
Cross wire space |
12.5-200mm |
|||
|
Max.mesh width |
1.2m |
1.6m |
1.2m |
1.6m |
|
Welding points |
25PCS |
32PCS |
49PCS |
65PCS |
|
Air cylinders |
25PCS |
32PCS |
17PCS |
22PCS |
|
Welding transformers |
125kva*3pcs |
125kva*4pcs |
125kva*5pcs |
125kva*6pcs |
|
Max. welding speed |
120-150 times/min |
|||
|
Weight |
5.2T |
6.5T |
5.8T |
7.2T |
Auxiliary Equipment:
|
Cage bending machine |
Edge cutter |
Door digging and edge cutting machine |
Door digging machine |
|
|
|
|
|
|
C nail gun |
Electric cutter |
Pneumatic spot welding machine |
Wire straightening and cutting machine |
|
|
|
|
|
Sales-after service
|
We will provide a full set of installation videos about the concertina razor barbed wire making machine
|
Provide the layout and electrical diagram of the concertina barbed wire production line |
Provide installation instruction and manual for automatic security razor wire machine |
Answer every question online 24 hours a day and talk to professional engineers |
Technical personnel go abroad to install and debug razor barbed tape machine and train workers |
Equipment maintenance
 |
A. Lubricate regularly as indication.
B. Checking electric cables connection every month. |
Certification

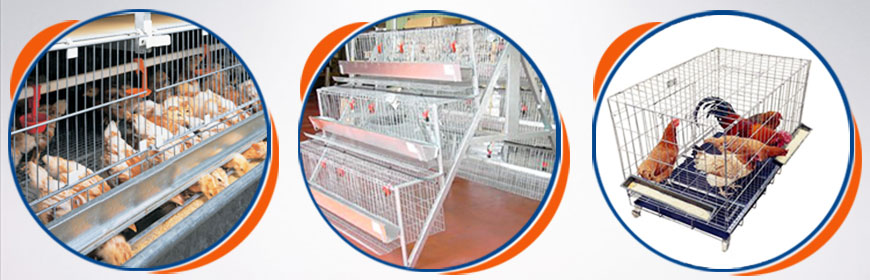

Application
FAQ
Q: What are the accepted payment methods?
A: T/T or L/C is acceptable. 30% in advance, we start produce machine. After machine finished, we will send you testing vide or you could come to check machine. If satisfied with machine, arrange balance 70% payment. The we can loading machine to you.
Q: How to transport different type of machine?
A: Normally 1 set of machine need 1x40GP or 1x20GP+ 1x40GP container, decide by the machine type and auxiliary equipment you choose.
Q: The production cycle of the razor barbed wire machine?
A:30-45days
Q: How to replace worn parts?
A: We have free spare part box loading together with machine. If there is other parts needed, normally we have stock, will send to you in 3 days.
Q: How long is the warranty period of the razor barbed wire machine?
A: 1 year after the machine arrive in your factory. If the main part broken because of quality, not manually mistake operation, we will send you replace part for free.
Q: What’s the different between the pneumatic type welding machine and mechanical type?
A:
The welding speed is faster.
1. The quality of finished mesh is better due to same welding pressure.
2. Easy to adjust mesh opening by electric-magnet value.
3. Easier to maintain and repair.
