3-6mm wire mesh welding machine, used for making roof mesh, road mesh, construction mesh, 3-6mm wire, finished mesh in roll;

1.Technical Parameter:

Model DP-2500BN
Wire diameter 3-6mm/ 2.5-6mm
Line wire space 50-300mm (adjustable)
Cross wire space Min. 50mm (adjustable)
Mesh width Max. 2500mm
Mesh roll length Max. 100m (mostly is 30-50m/ roll)
Welding speed Max. 75 times/ min
Production 1800m/ 8 hours
Finished mesh Can be roll mesh and panel mesh, according to your needs
Electrodes 48 pcs
Welding transformer 150kva* 6 pcs
Machine dimension 6.9* 3.4 *1.8 m
Machine weight 6.5 t
Working space 21*5 meter
Worker 2-3
Controlled PLC+ touch screen
Voltage As your required
Power supply Min. 160kva
Packing 1* 40ft container

2.YouTube Video

3.Superiorities of welded mesh production line

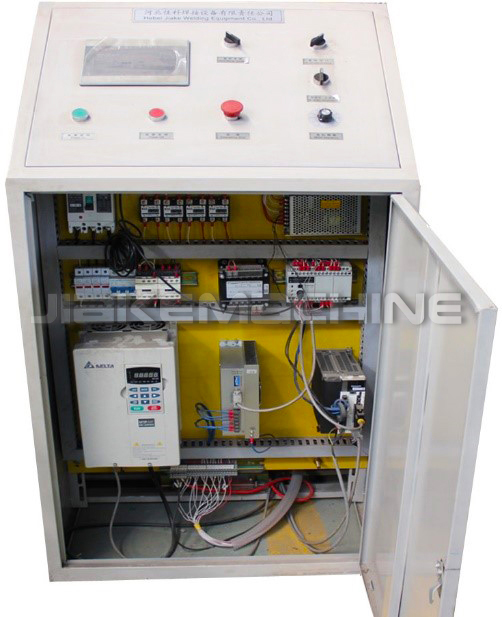

Main electric components:

●Panasonic (Japan) PLC

●Weinview (Taiwan) touch screen

●Schneider (France) low-voltage apparatus

●ABB (Switzerland Sweden) switch

●Schneider (France) air switch

●Omron (Japan) power supply

●Delta (Taiwan) Variable-frequency Drive

●Autonics (South Korea) encoder

●Panasonic (Japan) servo drive

thrt

Main Technologies:

●Welding electrodes are made of pure copper (upper Φ20*120mm, lower 20*20*20mm), durable.

●Main motor (5.5kw)&Helical gear reducer connects the main axis directly, big.

●Cast water-cooling transformers, high efficiency. The welding degree is adjusted by PLC.

●SMC (Japan) air cylinders & pneumatic parts, machine working more stable.

●Panasonic (Japan) servo motor & planetary reducer for pulling mesh, more precise.

●The cable carrier is the Igus brand, imported from Germany, the best one all over the world, not hanging down.

Wire feeding way：

●Line wires are fed from wire coils automatically and through precise straight setting equipment.

●Cross wires should be pre-straightened&pre-cut, then fed from hopper device automatically. The hopper device is controlled by the step motor and SMC air cylinder, has a high capacity.

4.Finished Rolled Mesh

erg

3-6mm wire mesh welding machine, used for making roof mesh, road mesh, construction mesh, 3-6mm wire, finished mesh in roll.
